Yamaha MG20XU Mixer

• 20-channel live mixer
• 16 mic/ 20 line inputs
• PAD switch + phantom power
• D-PRE mic preamps + compressors
• 24 built-in effects

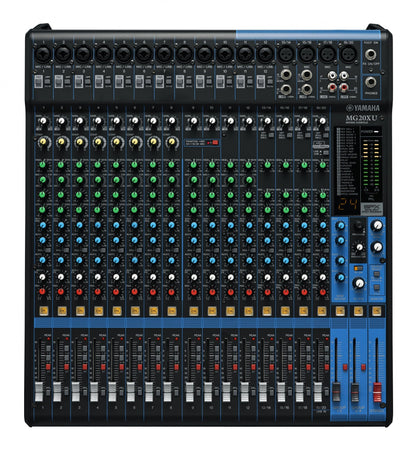

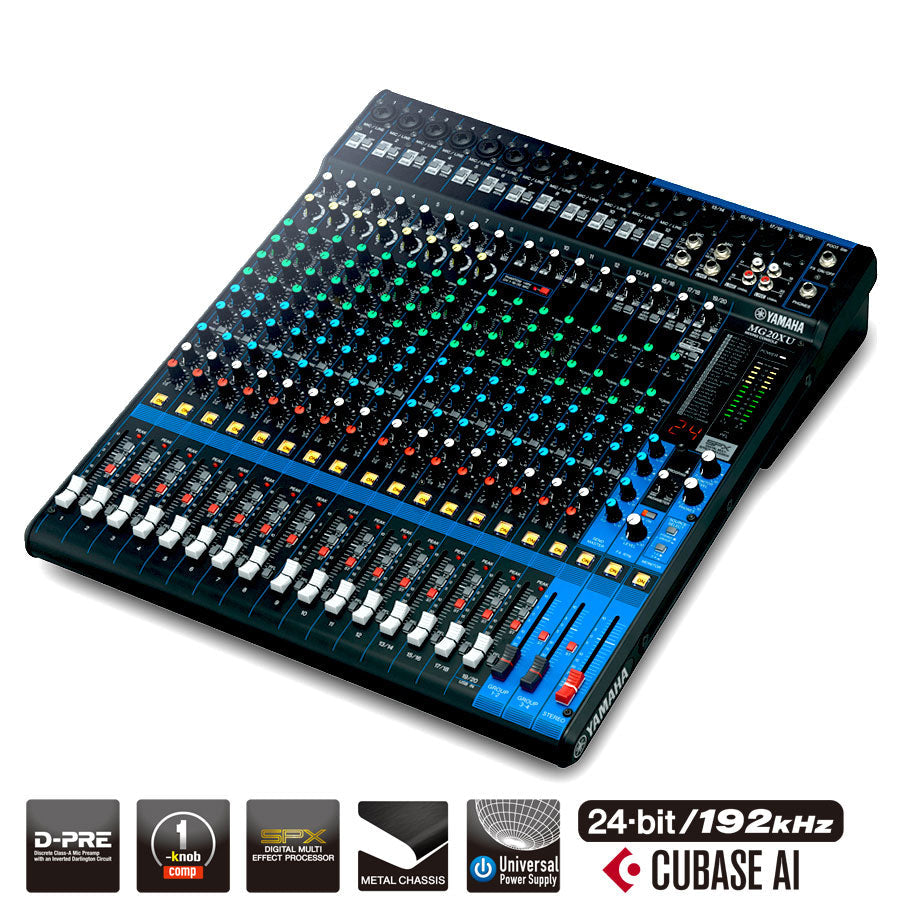

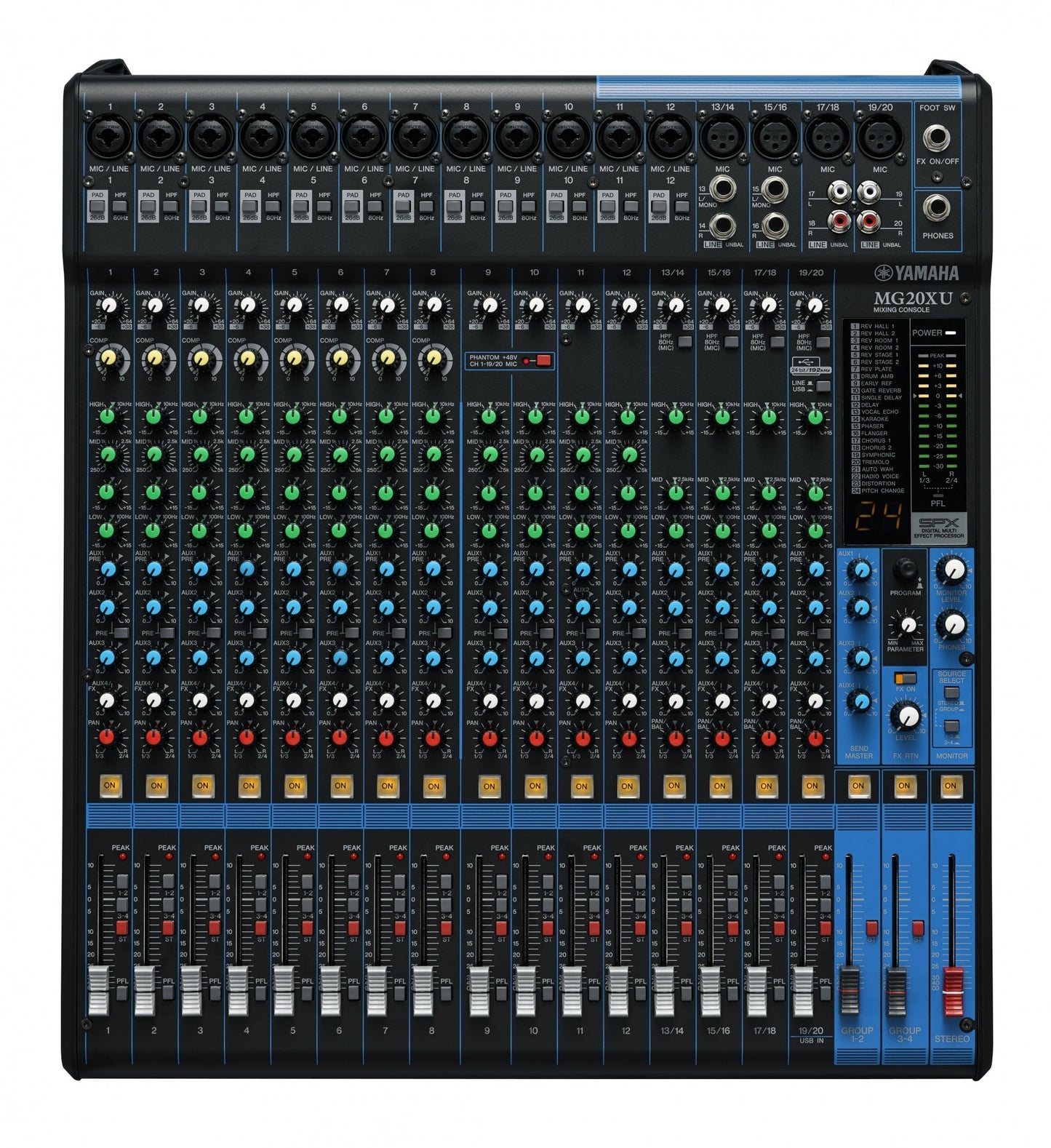

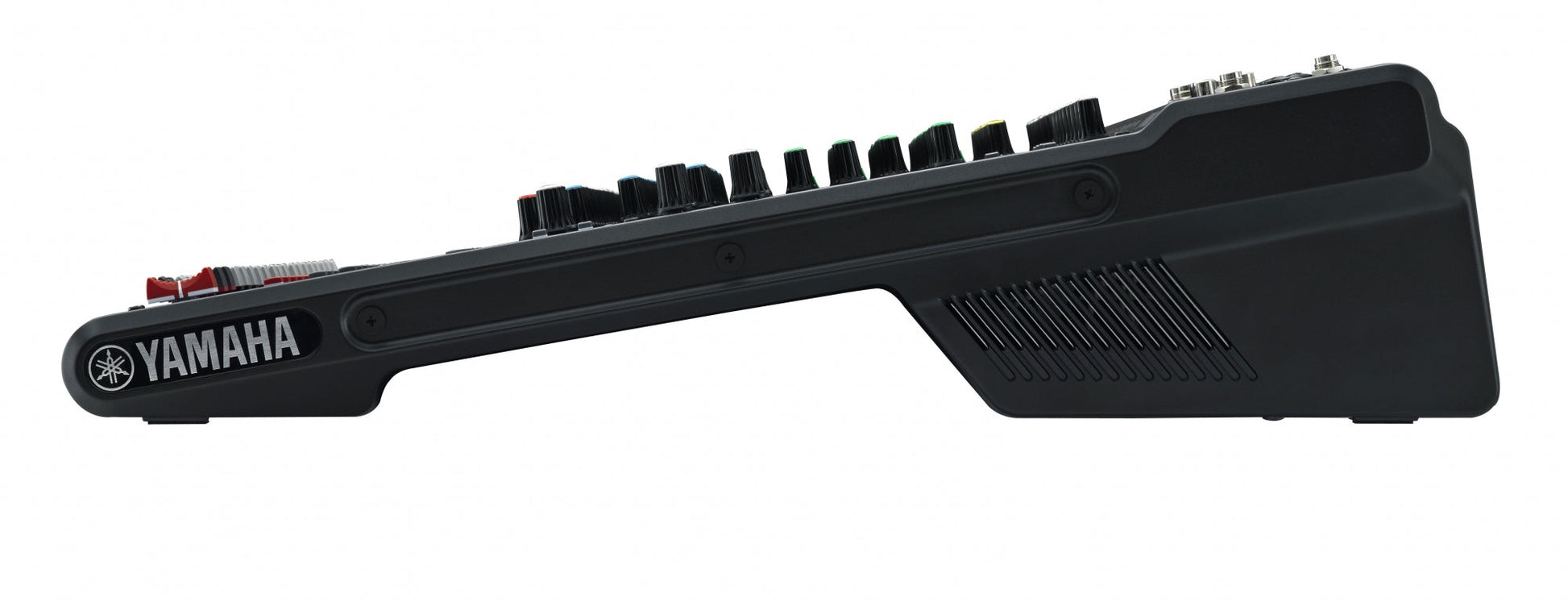

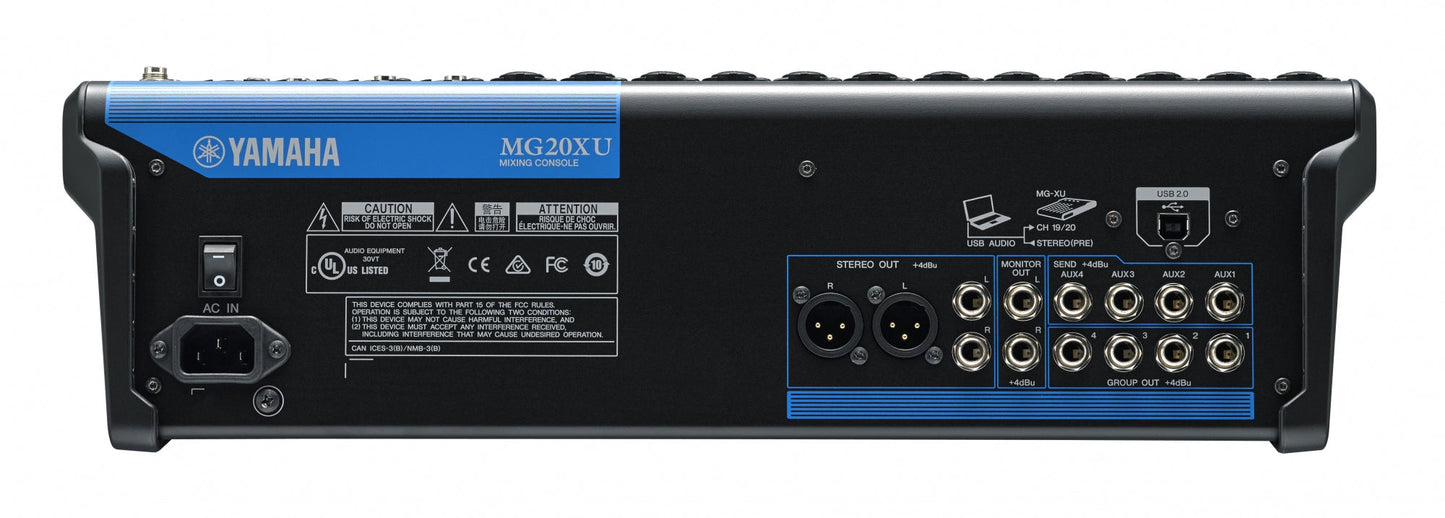

Yamaha MG20XU Live Mixer

Yamaha The MG20XU is a 20-channel live mixer with 16 mic/ 20 line inputs (12 mono + 4 stereo), 4 GROUP busses, 4 AUX, 1-button compressors, PAD switch on mono inputs, 48 V phantom power, 3-band EQ and high pass filter that minimizes unwanted low frequency sounds for a cleaner mix.

The MG20XU model is compatible with iPad 2 or later and comes with Cubase AI DAW software for music production.

D-PRE mic preamps

Yamaha The MG20XU is equipped with Class A D-PRE mic preamps with operational amplifiers that use inverted Darlington circuitry for more power with lower impedance. The D-PRE preamp has wide frequency response to handle all audio signals.

SPX with 24 effects

The MG20XU sets Yamaha MG20 apart by having the SPX digital effects processor built in, giving the mixer a choice of 24 different effects for mixing. You get chorus, flanger, distortion, reverb, delay and more, all of which have adjustable parameters that can be tailored to your unique mix.
